Create a frame

As we said already, iCalamus is a frame-oriented typesetting program. This is: all content which you want to use in a document has to be placed into frames. And these frames need to be created. Sometimes this is done automatically, but most of the time you will have to create these frames yourself. iCalamus cannot really guess where you want to place a frame.

If you want to create a frame, you have to select a frame Creation tool from the Tool palette first.

The Tool palette is that small window with the blue iCalamus title which is placed somewhere in the left screen area on first launch, but can be moved anywhere on the screen.

When you take a closer look to the Tool palette, you will recognize that the function buttons which are shown there, are organized into three groups. The second group contains the frame Creation tools.

The symbols of these six Creation tools can easily be recognized and used.

Use the Text tool for creating text frames. (You should have bet, right?)

The Image tool to the right of it creates image frames (and also automatically starts an image import).

The following four tools are named Container tool, "Shape tool, Line tool and Vector tool. These four have a tiny black edge in their function icon. It indicates that there are more tools available there. When you click on one of these tools and keep the mouse button pressed, a selection menu with more tools is shown.

Now you have met the Creation tools, and can decide which kind of frame you want to create first. The procedure is always the same; it doesn't matter which Creation tool you choose.

1. Click somewhere into the (white) page of the current document, and keep the mouse button pressed.
2. Now drag the mouse away from the first click point, still keeping the mouse button pressed.
3. You will see immediately that a gray rectangle is drawn which indicates the size of the frame.
4. When the frame has reached the desired size, release the mouse button.

Your first frame in an iCalamus document is done. Congratulations.

Depending on which Creation tool you have chosen, you will see a gray ruler with several black buttons above the frame (text frame), or the Mac OS X file selector might open to let you import an image file. In container frames, you will see a gray X in the frame, which indicates that this frame is empty. In shape frames you will see the selected shape, which is a black rectangle by default. In line frames you will see – surprise! – a line.

If you have chosen the Vector tool, you might wonder about the result. You see a frame with kind of a crooked line, and, when you continue clicking in the document, this line gets longer and more crazy. What happened here? The Vector tool has created a new frame and opened it at the same time. So you edit the content of the vector frame when you continue clicking.

How do I see if a frame is open or closed?

An open frame shows a dark gray triangle in its upper left corner which points downwards. If you want to close this frame again, simply click once on this triangle. It should then point to the right. (Alternatively, you will find both the commands Open and Close in the Objects menu which do the same things.)

An open text frame does not show this triangle, but instead it shows the current text ruler above the frame.

Now, what did I tell you! – The more you have tried creating frames, the more frames you have spread around in your document. If you want to move frames to another position, or want to resize them, you will firstly have to change the tool!

Until now, you have got to know the Creation tools. But these can be used only for creating new frames, and even more new frames. If you want to select, move or resize frames, you need the Selection tool which is placed in the upper left corner of the Tool palette. Exactly – it's the arrow symbol.

Using the Selection tool, you open and close frames by clicking on the tiny triangle in the upper left corner of the frame. If you want to move a frame, simply click somewhere in the closed frame. Thus it will be selected, and you can then see its border and the gray grab points in the middle of the frame borders and at the frame corners. Now you can move it by clicking it and keeping the mouse button pressed. Move the mouse pointer – the frame will follow your movements. The old position of the frame will still be shown, but in lighter colors. When you release the mouse button, the frame will be placed in its current position. Thus it is moved. Lesson learned.

If you want to resize a frame, click one of its gray grab points which we mentioned before. Now drag the grab point in the desired direction, keeping the mouse button pressed. When you move the grab points in the middle of the the frame borders, the other borders of the frame stay in their position. By using the grab points at the frame corners, you can change the frame's size in two directions at the same time.

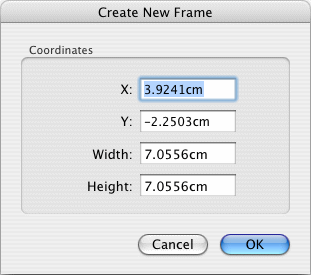

Tip: Of course you can create frames by numeric input, too. Simply click once in the document page. This opens a dialog where you can enter the coordinates of the new frame.

For numeric moves and resizings, please use the Geometry inspector, which cannot be described here. You will find every single button and switch described in detail in the reference manual chapters.

Hint: We talked about distinct frame types in this introductory chapter (like text frames, image frames, etc.). But, in reality, these frame types do not exist at all. In iCalamus, a frame can contain everything. An image frame can become a text frame, a shape frame can contain an image, etc. But this is mentioned here just for the record. You will discover the resulting possibilities later, step by step.
